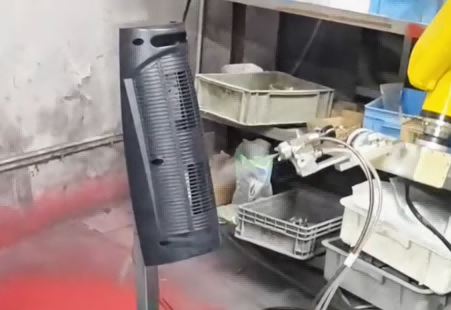

XP1440-10P Painting Robot Enables Easy Automation for Complex Metal Surface Coating
Project Overview
For manufacturers producing metal components with complex surfaces, achieving consistent coating quality through manual spraying can be challenging.
Traditional manual spraying requires skilled operators to maintain consistent spray distance, angle, and movement speed. For products with curved surfaces and three-dimensional structures, uneven coating coverage and operator fatigue can affect final quality.
Through XARP's Zhejiang distributor partner, a teaching-free painting robot solution was delivered to an end-user manufacturer for metal enclosure and radiator cover coating applications.
The customer adopted the XP1440-10P painting robot with a hand-guiding trajectory teaching system, allowing operators to demonstrate the spraying path manually and let the robot repeat the complete coating process automatically.
Customer Application Requirements
The customer produces metal components including:
- Metal housings
- Equipment covers
- Radiator exterior shells
The workpieces feature:
- Curved surfaces
- Three-dimensional structures
- Appearance-sensitive coating requirements
The main challenges of manual spraying included:
- Different coating results between operators
- Difficulty maintaining consistent spray distance
- High skill requirements for experienced painters
- Challenges in achieving complete coverage on complex surfaces
The customer required a solution that could improve coating consistency while remaining easy to operate.
Solution: XP1440-10P Teaching-Free Painting Robot
XARP provided the XP1440-10P painting robot equipped with a hand-guiding programming system.
Unlike traditional robot programming methods that require complex teaching pendant operation, this system allows operators to directly guide the robot along the desired spraying path.
The workflow is simple:
- Operator manually guides the robot to simulate the spraying trajectory.
- The system records the complete movement path.
- The robot automatically reproduces the spraying process.
- The same coating path can be repeated for continuous production.
This significantly reduces programming difficulty and allows production operators to quickly learn robot operation.
Efficient Coating for Curved and 3D Metal Components
The XP1440-10P is designed for flexible painting applications requiring precise movement.
System specifications:
- Robot reach: 1440 mm
- Payload: 10 kg
- Repeatability: ±0.05 mm
For silver coating applications on metal housings, the robot provides stable control of:
- Spray distance
- Spray angle
- Movement speed
- Coating trajectory
The robot can achieve complete coverage on curved and three-dimensional surfaces, helping maintain consistent coating quality across different workpieces.
High Efficiency: One Workpiece Completed in 7 Seconds
During the customer application test, the XP1440-10P achieved a stable spraying cycle.
Production performance:
- Approximately 7 seconds per workpiece
- Automatic repeat spraying process
- Consistent coating result
Compared with manual spraying, robotic automation reduces variation caused by operator movement and improves production rhythm for repeated products.
Easy Operation Reduces Automation Barriers
One of the key advantages of this project was the simplicity of operation.
During initial training, the customer team learned the basic operation process within approximately 30 minutes.
The intuitive hand-guiding teaching method allows operators without advanced robot programming experience to quickly create spraying paths.
This provides significant advantages for small and medium-sized manufacturers:
- Faster deployment
- Lower training requirements
- Easier production adjustment
- Reduced dependence on professional programmers
Distributor Support and Local Application Development
This project was delivered through XARP's distributor partner in Zhejiang, China.
XARP provides distributor partners with:
- Product training
- Application guidance
- Technical support
- Project cooperation
Because of the simple operation and practical performance of the teaching-free painting robot, the distributor also received positive feedback when introducing the solution to local manufacturing customers.
Application Benefits
| Item | Manual Spraying | XP1440-10P Robot Spraying |
|---|---|---|
| Programming | Operator skill dependent | Hand-guiding trajectory teaching |
| Surface coverage | Depends on experience | Stable and repeatable |
| Complex curved surfaces | Difficult to maintain consistency | Automated trajectory control |
| Training requirement | Requires experienced painters | Basic training within short time |
| Production cycle | Variable | Around 7 seconds/workpiece |
Conclusion
For metal enclosure and complex surface coating applications, teaching-free painting robots provide an effective solution for manufacturers seeking flexible automation.
The XARP XP1440-10P combines:
- Easy hand-guiding programming
- High repeatability
- Flexible movement
- Consistent coating quality
By reducing programming complexity and improving coating stability, XARP helps manufacturers adopt robotic painting automation with lower technical barriers.
Ready to Automate Your Surface Coating Process?
If you are looking for a flexible and easy-to-operate painting robot solution for your production line, contact our team to discuss your application requirements.
