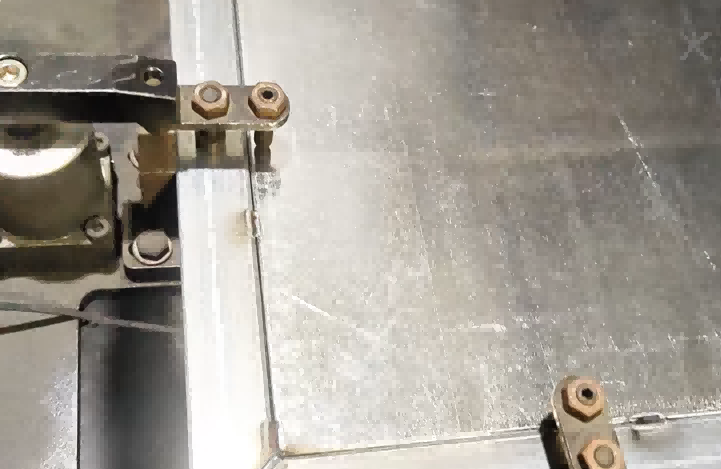

XP1900-25WL Laser Welding Robot Enables Efficient Stainless Steel Door Frame Welding
Project Overview
For stainless steel fabrication manufacturers, improving welding consistency while maintaining production efficiency is a key challenge.
Large stainless steel frame components often require multiple welding positions, including long straight seams and detailed corner areas. Manual welding requires experienced operators and can be affected by fatigue, positioning accuracy, and process consistency.
Through XARP's automation integration partner, a stainless steel frame manufacturer introduced a complete robotic laser welding solution consisting of two XP1900-25WL laser welding robots.
Each robot workstation was equipped with two head-tail positioners, creating a flexible multi-station welding system for continuous production.
Customer Application Requirements
The customer manufactures stainless steel frame components requiring:
- Stable laser welding quality
- Consistent production output
- Flexible handling of different welding positions
- Reliable long-term operation
The workpieces include:
- Long straight welding sections
- Corner and edge welding areas
- Large frame structures
The main production challenges included:
- Maintaining consistent welding quality over large workpieces
- Managing multiple welding angles
- Reducing dependence on skilled manual welding
- Improving production capacity for repeated orders
Complete Laser Welding Solution
To meet the customer's production requirements, the system was configured with:
- 2 × XP1900-25WL laser welding robots
- 4 × head-tail positioners
- Laser welding equipment
- Customized automation integration
The solution was designed and implemented by XARP's integration partner, who provided system planning, equipment integration, installation and commissioning, and production process optimization.
Interested in a similar laser welding robot solution for your factory? Contact our team for a free application evaluation.
Multi-Station Welding Configuration Improves Production Flexibility
Each XP1900-25WL robot is combined with two positioners, allowing operators to prepare one workpiece while the robot completes welding on another position.
This configuration provides several advantages:
Continuous Production Workflow
Operators can perform loading and unloading operations without waiting for the robot welding cycle to finish.
Improved Equipment Utilization
The robot spends more time performing welding tasks instead of waiting for manual preparation.
Flexible Workpiece Positioning
The head-tail positioners rotate the frame structure to suitable welding angles, improving accessibility for different welding areas.
Robotic Laser Welding for Stainless Steel Frames
The XP1900-25WL laser welding robot provides accurate motion control for stainless steel fabrication applications.
The system helps maintain stable control of:
- Welding trajectory
- Laser position
- Movement speed
- Welding parameters
For workpieces combining long straight sections and smaller corner areas, robotic laser welding provides consistent process control compared with traditional manual welding.
Human-Robot Collaboration During Production Introduction
As the customer's first robotic laser welding project, the implementation process involved close cooperation between customer operators, technical engineers, system integrator, and XARP support team.
During commissioning, the team worked together to optimize robot paths, welding parameters, positioner coordination, and production workflow.
This collaborative approach helped the customer quickly understand and adopt the new robotic welding system.
Integration Partner Cooperation
This project was completed through XARP's automation integration partner, responsible for delivering the complete application solution including robot selection, welding system integration, positioner configuration, installation, commissioning, and customer training.
XARP supports integration partners with technical training and application assistance to help deliver successful automation projects. Contact us on WhatsApp to discuss distributor or integration partner opportunities.
Application Benefits
| Production Requirement | Solution |
|---|---|
| Large stainless steel frame welding | XP1900-25WL laser welding robot |
| Multiple welding positions | Head-tail positioner integration |
| Continuous production demand | Two positioners per robot workstation |
| Stable welding quality | Robotic laser welding process |
| Reduced manual welding dependence | Human-robot collaboration workflow |
Conclusion
This stainless steel frame welding project demonstrates how robotic laser welding can be applied to large and appearance-sensitive metal fabrication.
By integrating two XP1900-25WL laser welding robots with four head-tail positioners, the customer achieved a flexible and stable welding solution designed for continuous production.
Through cooperation between XARP, automation partners, and end users, robotic welding technology helps manufacturers improve production consistency, efficiency, and process reliability.
