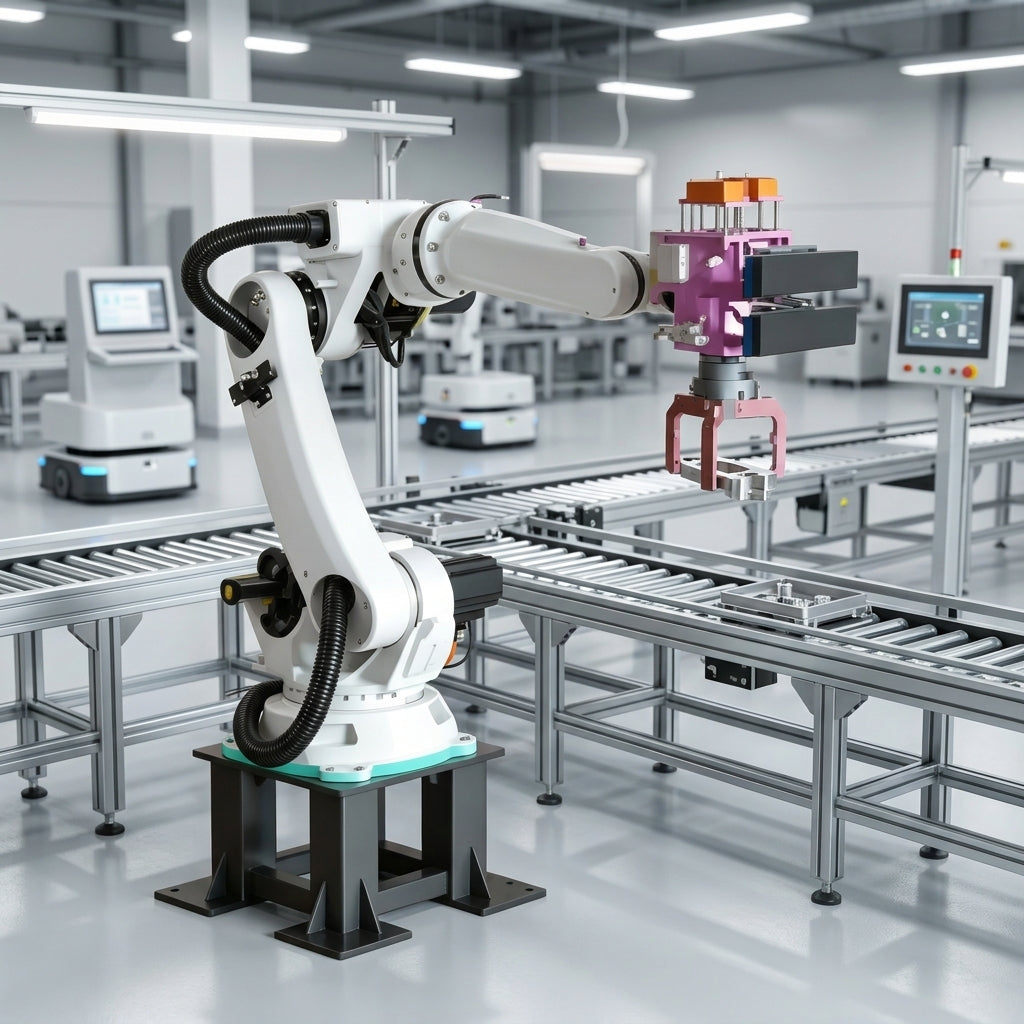

XP1900-25C Robotic Palletizer for CNC Machine Loading and Unloading

Automated Material Handling for CNC Pressing and Stamping Operations

Automating CNC machine loading and unloading is an important step for manufacturers looking to improve material handling efficiency and reduce repetitive manual operations.

The XARP XP1900-25C robotic palletizer can be integrated with CNC pressing and stamping equipment to automate the movement of workpieces between material storage, the machine, and downstream handling areas.

Rather than using the robot only for traditional palletizing, this configuration uses a palletizing robot arm as a flexible material-handling unit for CNC production. This makes the system suitable for manufacturers looking for robotic palletizing solutions as well as automated machine tending applications.

XP1900-25C for CNC Machine Loading and Unloading

In CNC pressing and stamping production, operators may repeatedly perform tasks such as:

• Picking up raw materials
• Loading parts into the CNC machine
• Removing processed parts
• Transferring workpieces
• Sorting finished components
• Moving parts to the next production stage

When these operations are repeated throughout the working day, robotic automation can reduce repetitive manual handling and create a more consistent material-flow process. The XP1900-25C can be programmed to perform these movements according to the production sequence of the CNC machine.

A typical workflow:

Raw Material → Robot Picking → CNC Machine Loading → Machining / Pressing → Robot Unloading → Finished-Part Handling

This configuration allows the robot and CNC equipment to work as one automated production cell.

Why Use a Robotic Palletizer for CNC Automation?

Traditional palletizing and material-handling equipment is often designed around a fixed movement pattern. A robotic system provides greater flexibility when manufacturers need to handle different workpieces or change the production layout.

• Flexible Workpiece Handling — the robot can be programmed for different picking and placing positions
• Automated Machine Tending — the same robot can load and unload the CNC machine according to the production cycle
• Reduced Repetitive Handling — operators can spend less time performing repetitive loading and unloading tasks
• Production Consistency — a programmed robot follows the same motion sequence repeatedly, helping standardize material handling
• Easier Production Expansion — additional operations can potentially be integrated into the same robotic cell

Robotic Palletizer vs. Traditional Material Handling

For manufacturers evaluating an automated palletizing system, the robot itself is only one part of the solution. A complete robotic material-handling cell may include:

• Palletizing robot arm XP1440-15C/XP1900-25C/2600-100C
• Gripper or customized end-of-arm tooling
• CNC press or stamping machine
• Material storage area
• Pallets
• Safety enclosure
• Sensors

• Robot controller

Depending on the workpiece, the robot can potentially be equipped with pneumatic grippers, electric grippers, vacuum grippers, magnetic grippers, or customized fixtures. The final end-of-arm tooling should be selected according to the workpiece's weight, dimensions, surface, material, and handling requirements.

Automated Palletizing System for Industrial Production

Although the term robotic palletizer is traditionally associated with stacking products onto pallets, industrial robots can perform a much broader range of material-handling tasks. For CNC and stamping production, the same robotic platform can be configured for:

Machine Loading → Machine Unloading → Part Transfer → Palletizing → Depalletizing → Workpiece Sorting → Production-Line Material Handling

This flexibility is particularly valuable for manufacturers whose production processes change between different products.

Designed for System Integrators

The XP1900-25C can also serve as a platform for robotic palletizer manufacturers, automation companies, and system integrators developing customized production cells. An integrator can configure the robot around the customer's CNC equipment, workpiece dimensions, production cycle, loading/unloading positions, pallet layout, gripper requirements, and safety requirements.

What Determines Robotic Palletizer Cost?

For B2B buyers researching robotic palletizer cost, the robot model is only one factor. The total system cost can vary depending on the required automation configuration, including robot payload, robot reach, end-of-arm tooling, number of CNC machines, pallet configuration, positioning equipment, safety system, sensors, PLC integration, conveyor systems, vision systems, and installation and commissioning.

A better approach is to evaluate the complete automation cell based on the required production process rather than comparing the price of a robot arm alone.

From Manual Handling to Robotic Automation

For a manufacturer currently relying on manual CNC loading and unloading, the automation path can be relatively straightforward:

Step 1 — Identify the Handling Process

Determine where the operator currently picks up and places the workpiece.

Step 2 — Define the Workpiece

Provide dimensions, weight, material, and surface characteristics.

Step 3 — Select the Gripper

Choose the appropriate end-of-arm tooling.

Step 4 — Define the Robot Motion

Program the loading, unloading, transfer, and palletizing positions.

Step 5 — Integrate With the CNC Machine

Coordinate the robot with the machine's production cycle and signals.

Step 6 — Build the Automated Cell

Integrate the robot, CNC machine, tooling, sensors, controller, and safety system.

Application Summary

Looking for a Robotic Palletizer Manufacturer?

XARP provides industrial robot platforms for manufacturers, automation companies, and system integrators developing customized robotic palletizing and machine-tending solutions. If you are evaluating an automatic palletizer, robotic machine-tending system, or customized robotic palletizer solution, provide:

• Workpiece dimensions
• Workpiece weight
• CNC machine model
• Loading/unloading positions
• Required cycle time
• Pallet dimensions
• Production volume
