Robotic Welding Solution for Shipbuilding Components with XARP XP1440-10W

Background: Automated Welding for Shipbuilding and Marine Component Manufacturing

Shipbuilding and marine component manufacturing often involve large metal structures, long welding seams, and demanding requirements for welding strength and consistency.

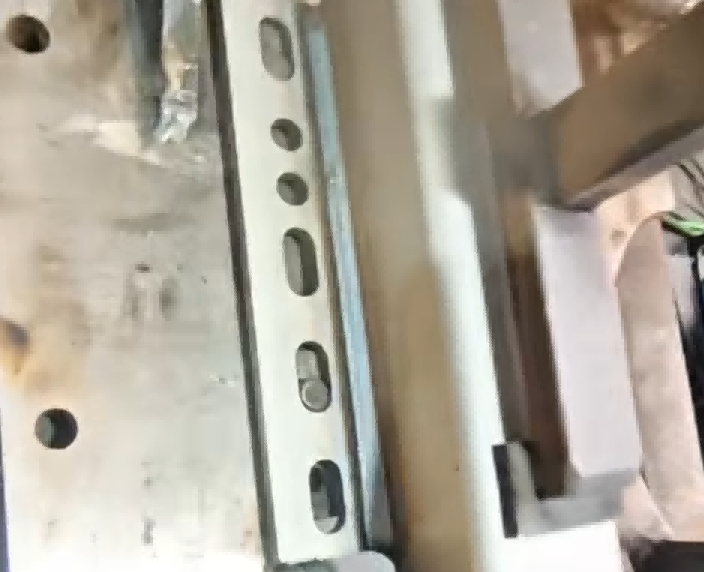

A XARP partner in Jiangsu, China, integrated an XARP XP1440-10W robotic welding system with a single-axis head-to-tailstock frame positioner and customized tooling for shipbuilding-related welding applications.

The solution combines robotic gas-shielded welding with controlled workpiece positioning, providing a more consistent and repeatable welding process.

Complete Robotic Welding Configuration

The application uses a coordinated system consisting of:

• XARP XP1440-10W welding robot
• Gas-shielded welding system
• Single-axis head-to-tailstock frame positioner
• Customized workholding fixture
• Robot control and welding process programming

Instead of relying only on the robot arm to reach different welding positions, the positioner rotates the workpiece so that the welding torch can maintain a more suitable working position throughout the process.

Why Use a Head-to-Tailstock Positioner?

For long or structurally complex workpieces, robot reach alone may not provide an ideal welding angle for every section.

A single-axis head-to-tailstock positioner supports the workpiece at both ends and rotates it around its axis. This configuration can help:

• Improve welding accessibility
• Reduce difficult welding angles
• Maintain a more consistent torch position
• Reduce unnecessary robot movements
• Improve process repeatability

For long structural components, the combination of robot + positioner + fixture can therefore be more practical than using the robotic welding arm alone.

Customized Fixture for Stable Workholding

The workpiece is secured using a customized fixture designed around the specific component geometry. The fixture provides stable positioning during welding and helps ensure that the workpiece remains correctly located while the positioner rotates it.

For robotic welding, fixture design is particularly important because the robot follows a programmed trajectory based on a defined workpiece position. Stable and repeatable positioning helps maintain the relationship between:

Workpiece → Fixture → Positioner → Robot → Welding Torch

This is one of the key foundations of repeatable robotic welding.

Application in Shipbuilding

Shipbuilding-related components often contain long welding seams and structural joints where welding quality and consistency are important.

With the workpiece supported by the head-to-tailstock positioner, the XP1440-10W robotic welding arm can work together with the rotating axis to access different sections of the component. The system can be applied to:

• Marine structural components
• Shipbuilding metal parts
• Long welded structures
• Heavy-duty fabricated components
• Other large metal fabrication applications

The same configuration can also be adapted to other industries where long or rotationally structured workpieces require automated welding.

From Individual Robot to Complete Welding Solution

This application demonstrates an important principle in robotic welding: the robot is only one part of the automation system.

For a successful application, the overall solution needs to consider:

Robot + Welding System + Positioner + Fixture + Programming

The correct combination depends on the workpiece geometry, welding position, production requirements, and required cycle time. For system integrators and manufacturers, this approach provides greater flexibility when developing robotic welding cells for different components.

XARP Support for Automation Partners

This project was delivered through a XARP partner in Jiangsu. XARP works with automation partners by providing robotic equipment, technical communication, application support, and solution development assistance.

For partners working with shipbuilding, metal fabrication, and structural welding customers, the XP1440-10W platform can be configured with different fixtures and positioners according to the actual production requirements.

Results

• More consistent welding quality across long seams and structural joints
• Improved welding accessibility through coordinated robot and positioner movement
• Repeatable process with stable fixture and defined workpiece positioning
• Flexible configuration adaptable to different shipbuilding component geometries
