Food carts may be relatively compact products, but their production can involve a surprisingly large number of repeated metal fabrication operations. Trays, brackets, frames, supports, and other welded components often need to be produced in batches while maintaining consistent dimensions and appearance.
For manufacturers producing food cart trays repeatedly, robotic welding can provide an alternative to performing every welding operation manually. The key is not simply installing a robot — the production process needs to be designed around the geometry of the tray, the welding joints, the fixture, and the required production rhythm.
Why Food Cart Trays Can Be Suitable for Robotic Welding
A typical metal tray may contain several straight or corner welding joints. Once the component design becomes standardized, the same welding operation can be repeated many times. This creates several characteristics that are favorable for automation:
- Repetitive welding paths
- Consistent component dimensions
- Defined welding locations
- Batch production
- Fixture-based positioning
- Similar welding parameters between workpieces
Instead of having an operator manually reproduce the same movements throughout the production day, a welding robot can execute a programmed sequence repeatedly.
The Fixture Is Part of the Welding Process
For small and medium-sized metal products, fixture design can have a major influence on robotic welding performance. If every tray is placed slightly differently, the robot will encounter the welding joint at a different location.
A properly designed fixture can establish:
- Repeatable workpiece positioning
- Consistent joint locations
- Stable component support
- Faster loading
- More predictable robot programming
This means the robot and fixture should be considered together during the automation design stage.
Where the XP1440-10W Fits

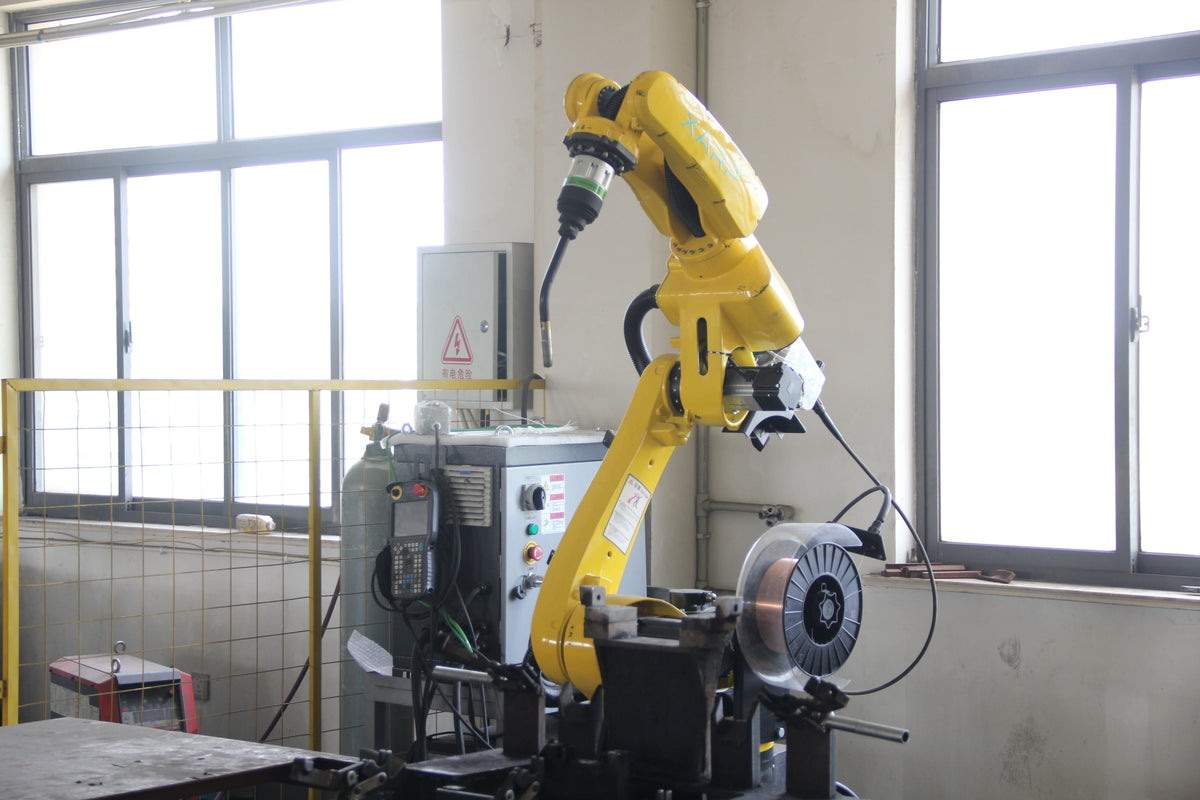

For applications involving compact and medium-sized welded components, the XARP XP1440-10W provides a 1,440 mm working reach and a 15 kg payload. The six-axis configuration allows the welding torch to change orientation when working around corners, edges, and different joint directions.
The robot is specified with 0.05 mm motion precision/repeatability, while the end axis uses IP65 protection. For a production environment where welding takes place repeatedly, these specifications provide a suitable platform for building a dedicated robotic welding cell.
When Should a Positioner Be Added?
Not every food cart tray requires a positioner. If the fixture can place all welding joints within an efficient working envelope, a fixed fixture may be sufficient. However, if the tray needs to be rotated during production, a positioner can help bring different welding surfaces into a more accessible orientation.
XARP can provide customized positioners based on:
- Workpiece dimensions
- Weight
- Rotation requirements
- Welding sequence
- Production cycle
This allows the automation system to be designed around the actual product rather than forcing the product to fit a standard machine.
Automation for Changing Product Models
Food equipment manufacturers may produce several tray sizes or related components. This creates an important question: can the same robotic welding cell handle more than one product?
The answer depends on the degree of variation. For products with similar geometry, manufacturers may be able to use interchangeable fixtures and different robot programs. This can make robotic welding more attractive for manufacturers producing multiple models rather than only one high-volume product.
From Robot to Complete Welding System
A robotic welding project normally involves more than the robot arm. The complete application may include:
Robot → Controller → Welding Equipment → Fixture → Positioner → Safety System
XARP develops its own robot control system, servo technology, and PLC technology and can provide customized automation according to the application. This is particularly useful for customers looking for a factory-direct supplier capable of handling more than the robot arm itself.
Supporting Small-Batch Automation
Not every manufacturer needs dozens of robots. Some customers may want to automate one repetitive process first and expand later. XARP supports small-batch procurement as well as OEM and private-label requirements.
For food equipment manufacturers, this provides a possible starting point: select one repetitive welding operation → validate the robotic process → establish production standards → expand automation when appropriate.
