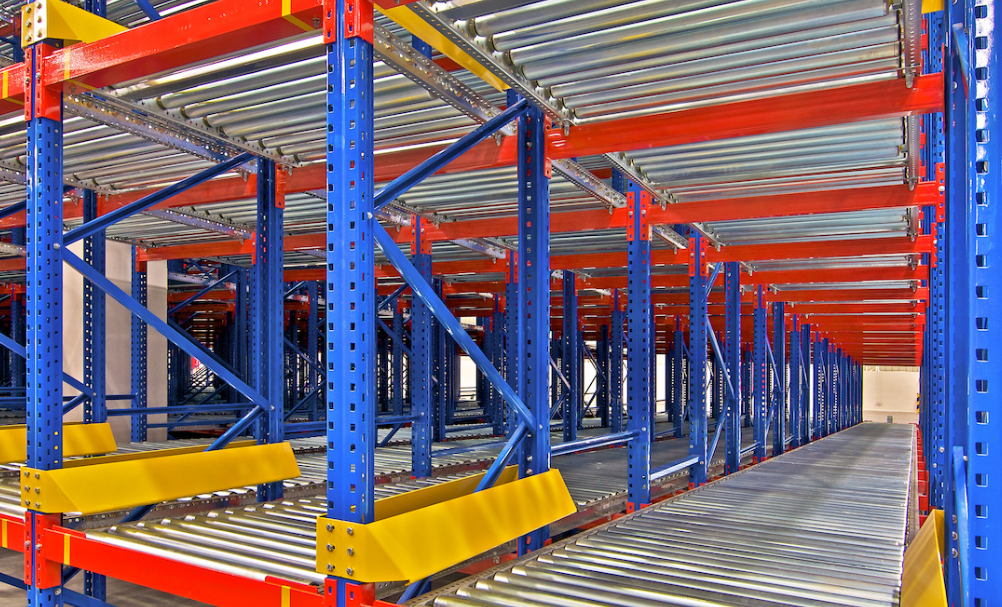

How Can Warehouse Racking Manufacturers Automate Steel Frame Welding?
Warehouse racking manufacturers face an unusual production requirement. Their products need to be manufactured efficiently, but the factory may also need to handle multiple rack sizes, beam configurations and customer-specific designs. This makes warehouse racking different from a single-product mass-production application.
The automation challenge is therefore not simply increasing welding speed — it is building a welding process that can remain productive when the product changes.
Where Does Automation Fit Into Racking Production?
Warehouse storage systems can contain many fabricated steel components. Potential welding applications include:
- Upright structures
- Rack frames
- Support assemblies
- Brackets
- Reinforcement components
- Base structures
The best automation candidate is usually the operation with a relatively stable welding sequence and enough production repetition. A manufacturer does not necessarily need to automate every process — one repetitive component can be a practical starting point.
The Business Case for Flexible Welding Automation
For a rack manufacturer, flexibility can be as important as robot speed. If each model requires completely different fixtures and programming, changeover can become a major part of production. A more flexible robotic cell may use:
- Interchangeable fixtures
- Adjustable locating points
- Multiple welding programs
- Standardized workholding
- Programmable robot paths
The exact degree of flexibility depends on the product family.
Application Video
Why Fixture Design Matters for Rack Manufacturers
A welding robot follows programmed coordinates. Those coordinates depend on the workpiece being positioned consistently. For a rack component, a fixture can establish the reference points required by the robot. A well-designed fixture can help with repeatable loading, component alignment, clamping, faster changeover, and operator accessibility.
If several models share common dimensions, the fixture may be designed around adjustable locating elements. This is where customized automation can provide an advantage over an off-the-shelf robotic cell.
XP1440-10W for Steel Storage Components
The XP1440-10W is a six-axis welding robot with a 1,440 mm reach and 15 kg payload. Its stated motion precision/repeatability is 0.05 mm. The end axis has IP65 protection, while the other five axes use IP54 protection. For applications requiring additional movement, the robot supports external-axis integration. It is also CE certified.
The robot's suitability should be assessed according to the actual rack component and welding process.
What Happens When Products Get Longer?
Long beams or frames can require a different cell configuration. A manufacturer may consider:
Repositioning — move the component between welding operations.
Positioning — rotate the component using a positioner.
External axis — move the robot along the workpiece.
Multiple stations — divide the welding operation between dedicated stations.
The most economical solution depends on production volume and product design.
Why XARP Can Support Customized Racking Automation
XARP is not only supplying the six-axis robot. The company can support customized welding fixtures, positioners, external-axis systems, control systems, and OEM/private-label configurations. The robot controller, servo systems and PLC technology are developed by XARP. For manufacturers developing their own automation process, this can simplify communication between the equipment supplier and engineering team.
Factory-Direct Supply for Warehouse Equipment Manufacturers
Companies searching for a welding robot supplier for warehouse racking production may have different purchasing requirements. Some need one machine for internal production. Others may be distributors, system integrators, OEM manufacturers, or automation companies. XARP supports factory-direct purchasing, small-batch procurement, and private-label cooperation.
What Should a Racking Manufacturer Prepare Before Ordering?
Before asking a supplier for a quote, prepare:
- Rack component drawings and dimensions
- Weight, material, and steel thickness
- Welding process and locations
- Daily production and number of product models
- Required changeover frequency
- Factory space
If possible, provide a short video of the existing welding operation. This allows the supplier to understand the real production process rather than quoting based on product photos alone.
Support After the Robot Arrives
For international customers, technical support can directly affect the practical value of an automation system. XARP provides lifetime online technical support covering robot operation, programming and troubleshooting. For projects requiring physical assistance, overseas technical service and training can also be arranged. XARP has supplied robotic equipment to customers in Brazil, Russia, Germany and Thailand.
