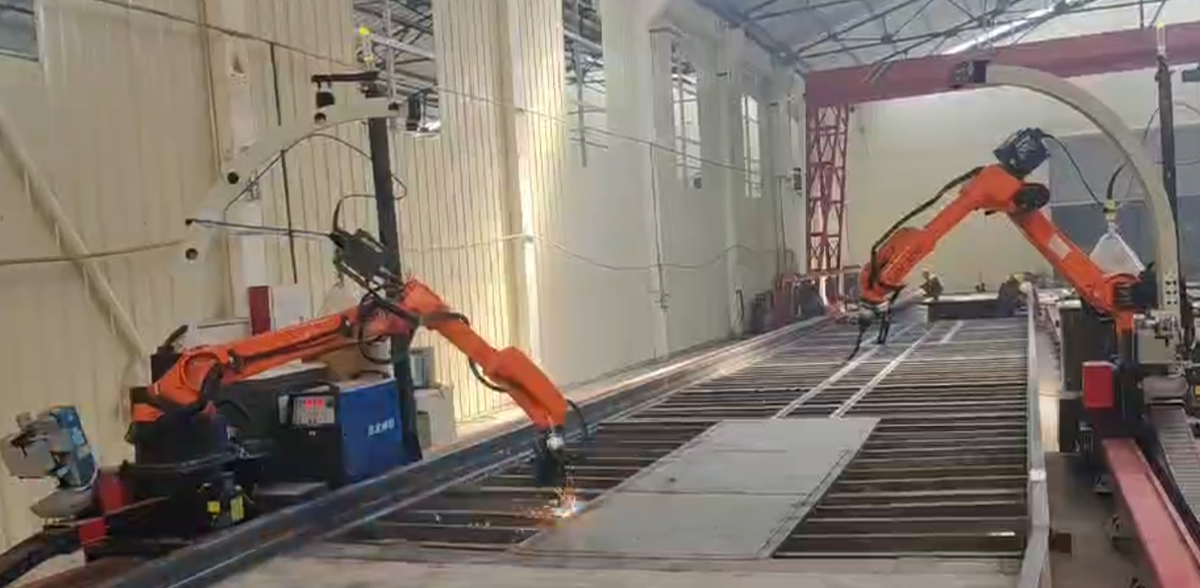

Dual XP2010-10W Robots Automate Large Stainless Steel Box Base Welding with Teach-Free GMAW System
Key Project Highlights:
- Application: Fully automated Gas Metal Arc Welding (GMAW / MAG) for large structural box bases.
- Workpiece Dimensions & Weight: 2,000 mm (W) × 660 mm (H) × 500 mm (D), 55 kg net weight (Stainless Steel).
- Core Hardware: Dual XARP XP2010-10W 6-axis welding robots (10 kg payload, extended reach).
- Key Innovation: Vision-guided Teach-Free Welding System paired with symmetrical dual-arm collaboration to eliminate manual teaching and offset thermal deformation.
- Quantifiable ROI: Reduced programming setup time by 80% and doubled daily welding output.
1. Technical Specifications & Workstation Architecture
| Parameter / Feature | Technical Specification | Engineering & B2B Purchasing Value |
|---|---|---|
| Robot Model | Dual XARP XP2010-10W (6-Axis) | Extended working radius covers large 2 m spatial envelopes |
| Payload Capacity | 10 kg per arm | Easily carries heavy water-cooled GMAW torches & laser sensors |
| Welding Process | GMAW / MAG (Gas Metal Arc Welding) | High-speed, deep penetration welding for stainless steel frames |
| Programming Method | AI-Guided Teach-Free System | Auto-generates paths from 3D vision; zero manual pendant teaching |
| Workpiece Material | Stainless Steel (55 kg) | High thermal expansion rate requiring strict heat input management |
| Cell Layout | Dual-Robot Synchronized Cell | Enables simultaneous, symmetrical welding to neutralize warping |
2. Engineering Challenges in Large Stainless Steel Fabrication
| Fabrication Challenge | Technical Cause | Production Impact |
|---|---|---|
| 1. Long Seams & Complex Trajectories | 2,000 mm frame with multi-planar internal joints | Hours of manual teach-pendant programming per batch |
| 2. High Thermal Expansion | Asymmetric heat input from sequential single-arm welding | 3 mm+ frame bowing and warping requiring manual rework |
| 3. Spatial Corner Transitions | Dynamic velocity changes at internal 90° corners | Unstable arc speed causing burn-through or undercut defects |
Complex Trajectories & Setup Bottlenecks
Welding a 2,000 mm × 660 mm × 500 mm box base involves long linear seams and multi-planar internal joints. Manually teaching every path using a traditional teach pendant takes hours per batch, making small-lot automation unviable.
Thermal Deformation Control
Stainless steel exhibits a high coefficient of thermal expansion and low thermal conductivity. Sequential single-robot welding concentrates heat on one side, creating high residual stress and causing structural bowing exceeding assembly tolerances.
Corner Arc Consistency
Maintaining uniform bead appearance and penetration along tight internal box corners requires continuous velocity control and real-time torch orientation adjustment.
3. The Technical Solution: Symmetrical Dual-Robot Cell + Teach-Free Trajectory Generation
1. Vision-Guided Teach-Free Trajectory Generation
Instead of manual point recording, the teach-free system uses 3D vision and spatial sensors to scan joint geometry automatically.
- Automated Path Planning: Calculates collision-free torch paths and optimal orientation angles in real-time.
- Rapid Job Setup: Cuts preparation time from hours to minutes for new box sizes or customized fabrications.
2. Symmetrical Dual-Robot Thermal Control
Operating two XP2010-10W 6-axis robots in a synchronized layout resolves heat distortion:
- Synchronized Heat Input: Both arms execute mirrored welds on opposite sides of the frame simultaneously.
- Distortion Neutralization: Balanced thermal input counteracts internal shrinkage stresses, keeping final dimensional tolerances within strict engineering specifications.
3. Dynamic Corner Weaving & Arc Control
Integrated arc control algorithms adjust wire feed speed and weaving dynamics at corner transitions, eliminating spatter, burn-through, and undercut on thin-to-medium plate joints.
4. Quantifiable ROI & Operational Impact
- 80% Setup Time Reduction: Automated trajectory generation removes manual teach-pendant overhead.
- Zero Post-Weld Straightening: Symmetrical heat balancing eliminates manual flame correction or mechanical flattening.
- 200% Throughput Rate: Dual-robot parallel execution doubles output compared to single-robot or manual welding setups.
5. Frequently Asked Questions (FAQ)
Q1: How does a teach-free welding system differ from traditional robotic teach pendants?
A1: Traditional robotic welding requires a technician to manually jog the robot arm and record every spatial point using a teach pendant. A teach-free welding system utilizes 3D vision sensors or CAD data to scan weld seams automatically, calculating collision-free paths and torch parameters without manual point recording.
Q2: Why is dual-robot synchronized welding necessary for large stainless steel boxes?
A2: Single-robot welding applies heat sequentially, creating uneven cooling and severe structural warping on long stainless steel assemblies. Dual-robot synchronized welding executes mirrored seams on opposite sides simultaneously, balancing thermal stresses and preventing frame deformation.
Q3: Can the XP2010-10W handle heavy-duty water-cooled torches and seam tracking sensors?
A3: Yes. The XP2010-10W features a 10 kg wrist payload capacity and an extended arm reach, allowing it to easily carry heavy water-cooled GMAW/MAG torches, laser seam tracking optics, and arc sensing units across large structural workpieces.
