Case Feedback: XP2010-10W Welding Robot Enables Human-Robot Collaboration for Long Steel Ladder Welding

Project Overview

For metal fabrication manufacturers, welding quality and production efficiency are two key factors that directly affect product competitiveness.

In many traditional welding workshops, long structural components still rely on manual welding. Although experienced welders can achieve good results, long welding paths require high concentration and physical effort. Maintaining consistent welding speed, welding angle, and appearance over the entire workpiece can also be challenging.

Through XARP's authorized distributor partner Dezheng Robotics in Shandong, China, a robotic welding solution was delivered to a metal fabrication factory in Hengshui, Hebei. The customer required an efficient welding solution for long steel ladders, with strong weld joints and an attractive welding appearance.

XARP provided the XP2010-10W gas metal arc welding robot with a single-station human-robot collaboration workflow to improve welding consistency and production efficiency.

Customer Application Requirements

The customer manufactures metal climbing ladders used for industrial applications. The workpiece characteristics include:

• Product type: Steel ladder structure
• Length: Approximately 2 meters
• Width: Approximately 800 mm
• Welding requirement: Strong structural connection and consistent appearance

Because of the long dimensions of the ladder frame, manual welding created several production challenges:

• Long welding paths increased worker fatigue
• Welding consistency depended heavily on operator experience
• Maintaining the same welding appearance for every product was difficult
• Skilled welders were required to complete repetitive welding operations

The customer was looking for a robotic welding solution that could improve stability while maintaining production flexibility.

Welding Solution: XP2010-10W Robot with Single-Station Human-Robot Collaboration

For this project, XARP provided the XP2010-10W welding robot system equipped with a gas-shielded welding configuration. Instead of replacing workers completely, the solution was designed around human-robot collaboration.

Operator Responsibilities

• Loading the ladder frame into the fixture
• Checking workpiece positioning
• Starting the welding process
• Removing the finished product

Robot Responsibilities

• Executing programmed welding paths
• Maintaining stable welding speed
• Controlling welding torch movement
• Repeating the same welding process accurately

This workflow combines human flexibility with robotic welding consistency, making it suitable for many metal fabrication applications.

Optimized for Long Structural Component Welding

For long workpieces such as steel ladders, robot reach and motion stability are important factors during system design. The XP2010-10W provides a suitable working range for this application, allowing the robot to complete long welding paths with stable movement. Compared with manual welding, robotic welding provides several advantages:

Stable Welding Speed

The robot maintains a consistent travel speed throughout the welding process, helping avoid common manual welding issues such as:

• Uneven weld bead formation
• Inconsistent welding appearance
• Variation between different operators

Repeatable Welding Quality

Once welding parameters and paths are programmed, the robot can repeat the same process for every workpiece. This improves:

• Production consistency
• Quality control
• Process stability

Reduced Operator Workload

The operator no longer needs to continuously perform long-duration welding operations. Instead, the operator manages loading, unloading, and production monitoring, reducing physical workload while improving efficiency.

High-Quality Fish-Scale Welding Appearance

For industrial metal structures, welding appearance is often an important quality requirement. The XP2010-10W welding robot achieves a uniform fish-scale welding pattern through accurate control of:

• Welding speed
• Torch angle
• Welding trajectory
• Welding parameters

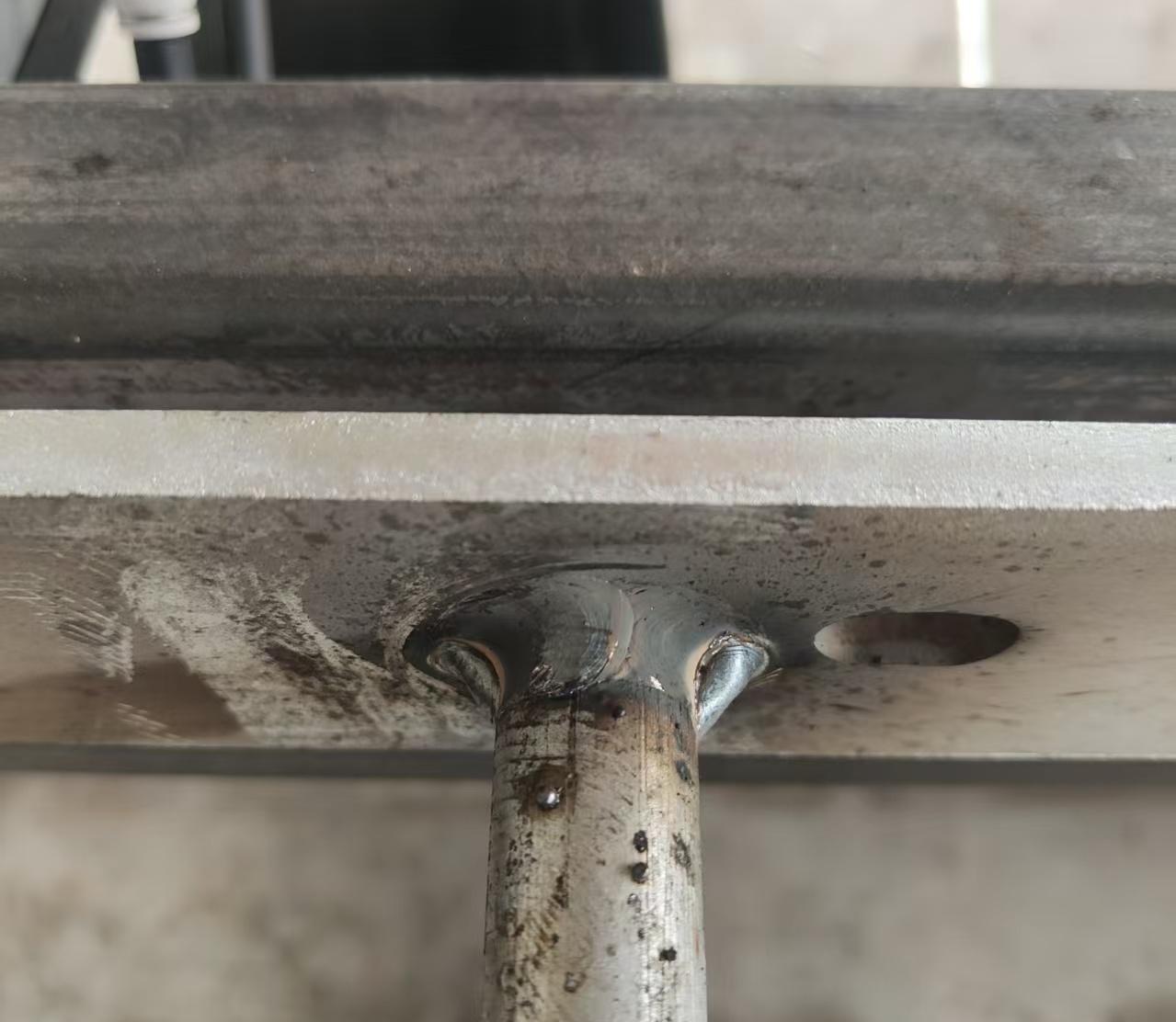

The completed ladder structures feature smooth weld seams, consistent fish-scale appearance, and reliable welding quality. Compared with manual welding, robotic welding reduces the influence of operator fatigue and skill differences, helping maintain stable product appearance.

Why Human-Robot Collaboration Is Suitable for Metal Fabrication

For many small and medium-sized manufacturers, fully automated production lines may not always be the most practical choice. A single-station human-robot collaboration welding system provides a balanced solution.

Flexible Production

Operators can quickly adapt to different production requirements and product changes.

Lower Automation Investment

Compared with complete automatic production lines, a single robot welding workstation requires less investment and is easier to integrate into existing workshops.

Improved Manufacturing Stability

The robot handles repetitive welding tasks, while operators manage flexible operations that require human judgment. This approach is especially suitable for:

• Steel structures
• Metal frames
• Equipment components
• Customized fabrication products

XARP Distributor Support and Project Cooperation

This project was delivered through XARP's authorized distributor partner, Dezheng Robotics in Shandong, China. XARP provides continuous support for distributor partners, including:

• Robot technical training
• Welding application guidance
• Project solution support
• Exhibition cooperation
• Customer communication assistance

Through close cooperation with local automation partners, XARP helps manufacturers access reliable welding robot solutions and professional technical services.

Application Benefits

After implementing the XP2010-10W welding robot solution, key improvements compared to manual welding:

• Welding method: Manual welding → Robot-assisted welding
• Welding consistency: Depends on operator experience → Stable and repeatable
• Long welding operation: High physical workload → Robot completes repetitive welding
• Product appearance: Variable → Uniform fish-scale weld
• Production management: Labor dependent → More stable process

Conclusion

For long metal structure welding applications such as industrial steel ladders, robotic welding provides an effective way to improve welding quality, production stability, and operator efficiency.

The XARP XP2010-10W welding robot combined with a single-station human-robot collaboration workflow offers a practical automation solution for manufacturers that require both flexibility and consistent welding performance. Through professional distributor cooperation and customized application support, XARP continues to provide reliable welding automation solutions for global manufacturing customers.
